Build Gym-Style interface

OpenAI Gym is widely used for reinforcement learning research. It is often desirable to have “Gym-style” environment interface to perform RL tasks.

In this tutorial, you will learn the following:

• Build an robot ant with SAPIEN pure Python API

• Set and get the states of objects

• Pack current simulation and restore it later

• Customize a simple Ant environment for training RL

Note

If you haven’t already done so, make sure you’ve completed the steps in A minimal example and SAPIEN assets and rendering section before starting tutorial of the robotics part.

Write a SAPIEN environment base

To build an Gym-style interface for control tasks, we may first write an virtual class base like Gym MujocoEnv. This will be a virtual class with many unimplemented member functions.

Environment base constructor

The major member variables can be divided into three groups:

1. For running simulation

2. For rendering

3. For apply control signal and get observation

Based on these principals, the constructor can be organized as follow:

class SapienControlEnv:
    def __init__(self, frame_skip, timestep=0.01, gravity=(0, 0, -9.8)):
        self.frame_skip = frame_skip
        self.timestep = timestep

        self._engine = sapien.Engine()
        self._renderer = sapien.OptifuserRenderer()
        self._engine.set_renderer(self._renderer)
        self.sim = self._engine.create_scene(gravity=np.array(gravity))
        self.sim.set_timestep(timestep)
        self.viewer = self.viewer_setup()

        self.model, self._init_state = self._load_model()
        self._dof = self.model.dof
        self._root = self.model.get_links()[0]

        # Unlike MuJoCo MJCF, the actuator information is not defined in the xml file
        # So you should define it explicitly in Python
        from gym.spaces.box import Box
        actuator_info = self._load_actuator()
        self._actuator_name, _actuator_idx, low, high = list(zip(*actuator_info))
        self._actuator_idx = np.array(_actuator_idx)
        self.action_spec = Box(low=np.array(low), high=np.array(high), dtype=np.float32)

Create the scene and renderer as usual, load robot model and actuator information in order to take action.

Get observation for agent

To perform RL tasks, we also need to get the observation after each simulation step. The following function shows how to get the internal state of agent.

    def get_qpos(self):
        if not self._root:
            root = [self._root.pose.p, self._root.pose.q]
        else:
            root = []
        return np.concatenate(root + [self.model.get_qpos().ravel()])

    def get_qvel(self):
        if not self._root:
            root = {self._root.velocity, self._root.angular_velocity}
        else:
            root = []
        return np.concatenate(root + [self.model.get_qvel().ravel()])

    def state_vector(self):
        return np.concatenate([
            self.get_qpos(),
            self.get_qvel()
        ])

Note

Unlike MuJoCo, there is no free joint in SAPIEN. Thus, get_qpos() functions will not return the pose of root link. In order to capture this information, we need to do it explicitly.

Virtual functions to be implemented

There will be some model-specific functions to be implemented for child class.

    def _load_model(self) -> Tuple[sapien.Articulation, np.ndarray]:
        raise NotImplementedError

    def _load_actuator(self) -> List[Tuple[str, int, float, float]]:
        raise NotImplementedError

    def _get_obs(self) -> np.ndarray:
        raise NotImplementedError

    def reset_model(self) -> np.ndarray:
        raise NotImplementedError

    def viewer_setup(self, width=640, height=480) -> sapien.OptifuserController:
        raise NotImplementedError

Build an ant robot purely by Python

Now we are going to implement an Ant environment. To do that, an articulated ant model is needed. Besides loading from a URDF file described here Load SAPIEN assets, an articulated object/robot can also be directly created with Python.

The general idea is to create an ArticulationBuilder for ant and several LinkBuilder for each articulation link as follow:

You may refer to The entire code or run an standalone example here for details.

This function will return an ArticulationBuilder filled with an ant model. This builder can be used more than once to build many ants as you like.

Ant environment class

Then implemented the Ant Environment as follow:

class SapienAntEnv(SapienControlEnv):
    def __init__(self, frame_skip, timestep=0.01, gravity=(0, 0, -9.8)):
        SapienControlEnv.__init__(self, frame_skip, timestep, gravity)
        self.sim.add_ground(-1)

    def step(self, a):
        x_before = self._root.pose.p[0]
        self.do_simulation(a, self.frame_skip)
        x_after = self._root.pose.p[0]
        forward_reward = (x_after - x_before) / self.dt
        ctrl_cost = .5 * np.square(a).sum()
        survive_reward = 1.0
        reward = forward_reward - ctrl_cost + survive_reward
        state = self.state_vector()
        not_done = 0.2 <= state[2] <= 1.0
        ob = self._get_obs()
        return ob, reward, not not_done, dict(
            reward_forward=forward_reward,
            reward_ctrl=-ctrl_cost,
            reward_survive=survive_reward)

    def _load_model(self) -> Tuple[sapien.Articulation, np.ndarray]:
        ant_builder = create_ant_builder(self.sim)
        ant = ant_builder.build(fix_base=False)

        # Step once to make sure everything goes smoothly
        self.sim.step()
        init_state = ant.pack()
        return ant, init_state

    def _load_actuator(self) -> List[Tuple[str, int, float, float]]:
        assert self.model, "Ant model should be loaded before actuator"
        actuator_info = []
        idx = 0
        for joint in self.model.get_joints():
            if joint.get_dof() == 0:
                continue
            if joint.get_name().startswith("hip"):
                actuator_info.append((joint.get_name(), idx, -2000, 2000))
            elif joint.get_name().startswith("ankle"):
                actuator_info.append((joint.get_name(), idx, -1000, 1000))
            idx += joint.get_dof()

        return actuator_info

    def _get_obs(self) -> np.ndarray:
        return self.state_vector()[2:]

    def reset_model(self) -> np.ndarray:
        self.model.unpack(self._init_state)
        # Perturb the joint velocity a little bit
        self.model.set_qvel(self.model.get_qvel() + np.random.rand(self.model.dof) * 0.1)
        return self._get_obs()

    def viewer_setup(self, width=640, height=480) -> sapien.OptifuserController:
        self.sim.set_ambient_light([.4, .4, .4])
        self.sim.set_shadow_light([1, -1, -1], [.5, .5, .5])
        self.sim.add_point_light([2, 2, 2], [1, 1, 1])
        self.sim.add_point_light([2, -2, 2], [1, 1, 1])
        self.sim.add_point_light([-2, 0, 2], [1, 1, 1])

        controller = sapien.OptifuserController(self._renderer)
        controller.set_current_scene(self.sim)
        controller.set_camera_position(0, 1, 10)
        controller.set_camera_rotation(0, -1.5)
        controller.show_window()
        return controller

The highlighted lines show how to save the internal simulation states and load it later. Note that this function is only for an single model but not entire simulation scene.

Use Ant environment

Now we can use our SapienAntEnv as Gym.

if __name__ == '__main__':
    env = SapienAntEnv(5, timestep=1 / 100)
    observation = env.reset()
    for i in range(1000):
        env.render()
        action = env.action_spec.sample()
        observation, reward, done, info = env.step(action)

    env.close()

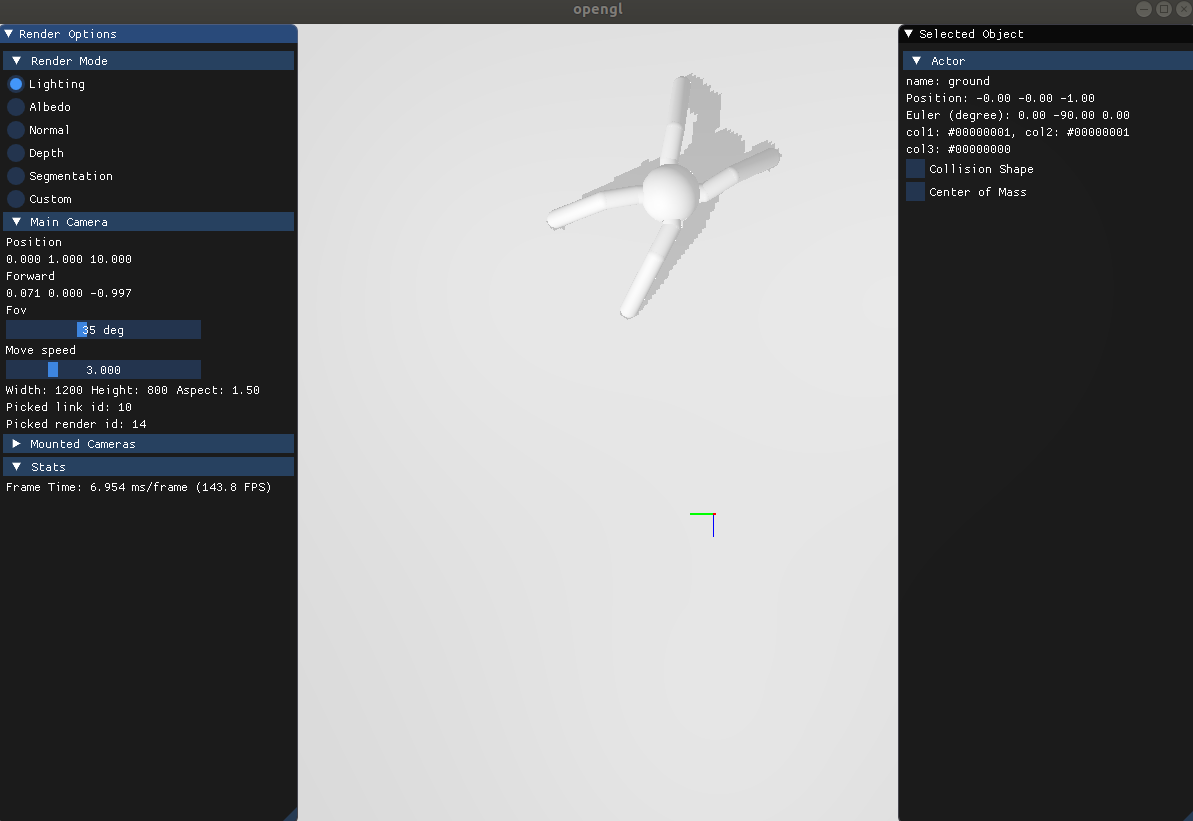

You will see something like that:

The entire code

Note

To run the example below, you need to pip install transforms3d for transformation conversion and gym for action_spec.

Download the entire code here.
